Features
Energy saving

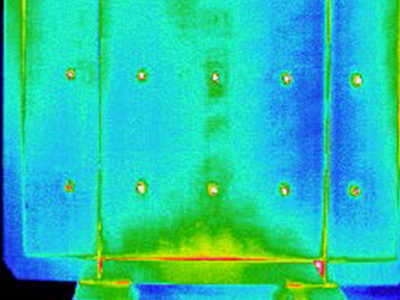

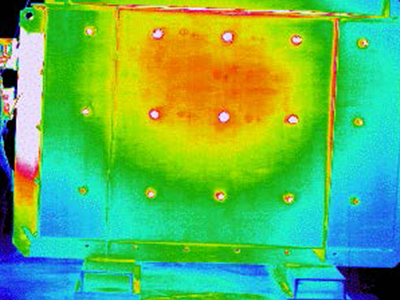

This is a molten aluminum holding furnace that reduces energy consumption by using an appropriate refractory composition and a furnace body structure, which prevents heat from escaping to the outside. It is also able to suppress the rise in surface temperature due to deterioration of refractory materials, and has a track record of maintaining a surface temperature of 56°C or lower for several years after delivery.
![高機能アルミ保持炉の特徴1
省エネ
適正な耐火材構成と熱を外部に逃がしにくい炉体構造により、エネルギー消費を抑えられる](https://www.sanken-sangyo.co.jp/en/wp-content/uploads/sites/6/99227e9539130eb6d3c7f738c0d6a5c6.png)
![高機能アルミ保持炉の特徴1
省エネ
耐火材の劣化による表面温度の上昇も抑制でき、納入後数年にわたり表面温度56℃以下を維持している実績](https://www.sanken-sangyo.co.jp/en/wp-content/uploads/sites/6/0555145b4d2e355e752d23b39c18195c.png)
High Quality
In order to supply high quality molten metal to the pumping/ladling chamber, the furnace is designed so that molten metal does not flow directly into the pumping/ladling chamber. A degassing device is also installed at an appropriate location to reduce H2 gas in the molten metal.
H2 gas amount: 0.2cc/100g or less
K value: 0.4 or less (without filter)
Compatible with a wide range of heat sources

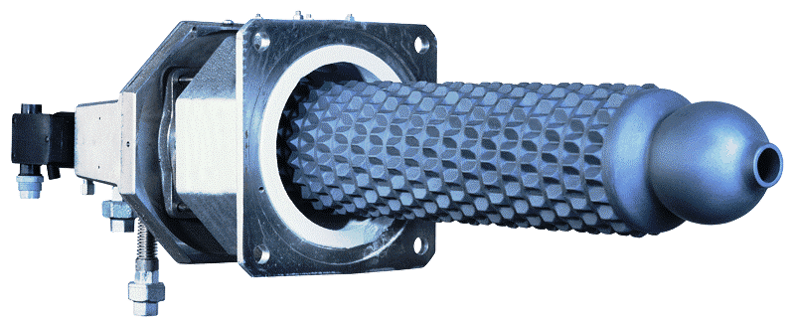

Can be used with a variety of heat sources, including energy-efficient self-heat-recovery gas burners (vertical immersion type) and immersion heaters (high-power immersion heaters (SA heaters) (for both vertical and horizontal types), horizontal immersion heaters, etc.).
![](https://www.sanken-sangyo.co.jp/en/wp-content/uploads/sites/6/1dd54af70f5c76d3ae80c0534743ebc1.png)
(with permission of
WS Wärmeprozesstechnik GmbH)
![](https://www.sanken-sangyo.co.jp/en/wp-content/uploads/sites/6/sa-heater.png)
